CNG Cylinder Making Machine, Seamless Fire Extinguisher Tank Forming Machine

                                                                                                                                                                  Hot /Thermal-Spinning Machine

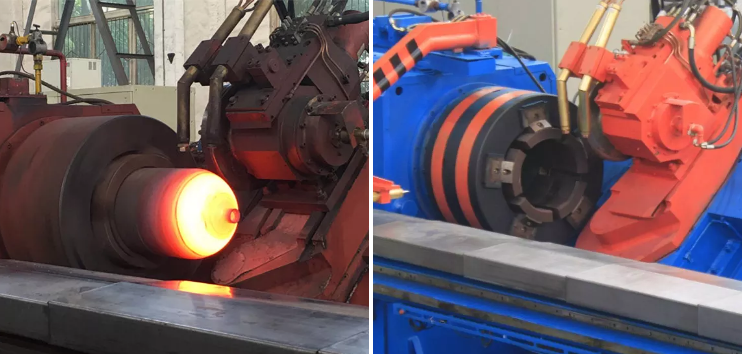

HFD180 Hot Thermal-Spinning Machine include Intermediate Frequency Heating Equipment, Thermal-Spinning Forming Machine, Bottom Pushing Machine, etc. Total power for Complete Equipment is about 200Kw, installation area is 13000 x 8000mm

1. Mold of bottom closed(one piece)

2. Mold of head closed(one piece)

3. Head closed spinning wheel (one piece)

4. Slag pouring machine (one set)

5. Intermediate frequency burner (two sets: one set for Ø80- Ø140, one set for Ø140- Ø180)

6. Clamping jaw pad (one set: Ø140)

7. V type frame (two pieces)

1. KGPS-B Thyristor Intermediate Frequency Inverter 1-1, Main Technical Parameter:
Rated Power (KW) Max Power (KW) Rated Frequency (Hz) Power Frequency Voltage(V) Output Voltage(V)
110 250 2500 3N-380 750

1-2, Master Control Broad: Master Control Broad uses imported integrated circuit. Rectifier triggers do not need any adjustment, it has phase sequence to adaptive electric circuit with high reliability. Inverter adapts sweeping-frequency and zero pressure start-up; it has the function of heavy load starting. Frequency tracking circuit using the average sampling programs to improve anti-jamming capability of the inverter. Inverter circuit also added inverter angle regulating circuit, which can automatically adjust load impedance matching.

1-3, Protection and Control: Master Control Broad internal function includes: Rectifier phase shifting trigger, Phase self-adaption, Inverter trigger, Reverse lead angle lock, Inverter repeat start, Over-current protection, Over-voltage projection, Open-phase protection, Hydraulic under-voltage protection, Control panel under-voltage protection etc.

1-4, The Standard of Frequency Converter: ZBK46001-87 Semiconductor Frequency Converter for Induction Heating JB/DQ6367-88 Semiconductor Frequency Converter for Intermediate Frequency Induction Heating, Product Quality Analysis and so on JB4086.85 Technical Condition of Electric Control Equipment for Intermediate Frequency Induction Heating JB/T4280-93 Intermediate Frequency Coreless Induction Furnace

1-5, Water Tank: Frequency Converter and Capacitor all adopt open return system, it’s better for observation. Cabinet body with water pressure protection device.

1-6, External Power Cord: External Frequency Power Cord enter from the top of Intermediate frequency power supply cabinet.

1-7, Power Regulating: There is Power Regulating Knob on the panel of Intermediate Frequency Power Supply Cabinet, the output power of frequency converter is adjustable.

1-8, Main Circuit Connection: Main circuits of the power supply cabinet are made by copper.

1-9, Color of Cabinet: Computer spray gray.

C. Cooling Water System (Equipped by user)

3-1, Technique Data: Cooling water inlet temperature: 5-35℃ Cooling water outlet temperature: ≤55℃ Cooling water pressure:0.3—0.4Mpa Water supply: 0.02835P(P is rated power) (M³/h) Gradient of water return pipe: I-0.01

3-2, Quality Demand of Cooling Water: PH:7-8.5 Total hardness: ≤10-degree Available capacity of cooling water pond cannot less than 2~3 times of supplying water.
