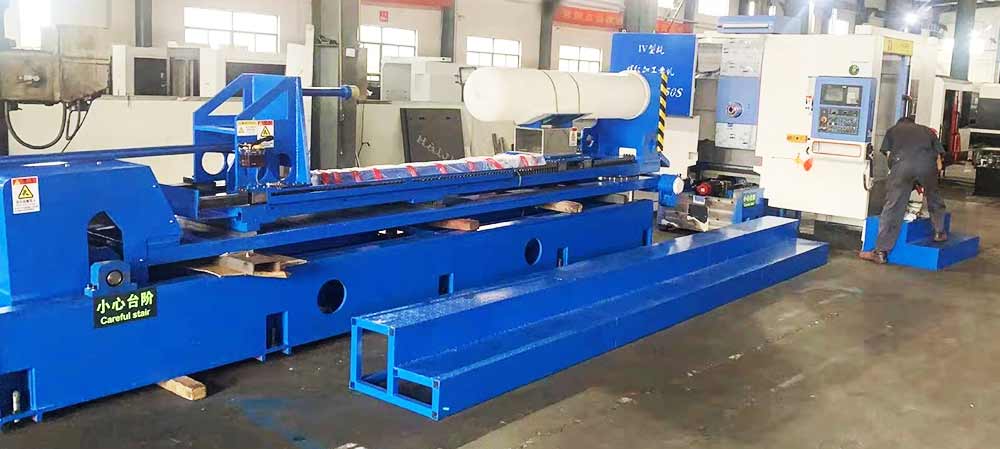

CNG Seamless Cylinder Threading CNC Thread Whirling Machine

1
Diameter range
φ141mm–φ356mm
2
Length range
300mm-2000mm
3
Main motor power
5.5KW converter motor
4
Converter motor
z-axis : 10M/MIN
X Stroke:10M/MIN
5
Tool holder
horizontal structure
6
Range of spindle speeds
100-1000r/min
Category:

Description

Product Overview

No
Item
Data
1
Diameter range
φ141mm–φ356mm
2
Length range
300mm-2000mm
3
Main motor power
5.5KW converter motor
4
Converter motor
z-axis : 10M/MIN
X Stroke:10M/MIN
5
Tool holder
horizontal structure
6
Range of spindle speeds
100-1000r/min
Machine processing :

Step 1.
Radial facing, cylindrical turning—finish the end face by the outer circular knife and turning of outer chamfer
Step 2.
Inside hole–adopts lathe processing of inner hole of inner hole cutter
Step 3.
Threading –adopts thread tool

Application

Machine Application
Seamless cylinder Tube neck drilling machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The work piece clamping adopts the front top bowl positioning.

CNG CYLINDER TYPE1

CNG CYLINDER TYPE2

CNG CYLINDER TYPE3

CNG CYLINDER TYPE4

OXYGEN GAS CYLINDER

CNG LONG TUBE TRAILER
