We are pleased to share the latest progress on a CNG cylinder hydrostatic testing machine ordered by our customer in India. The equipment has completed its manufacturing stage, and our technical team is now carrying out the final inspection and acceptance checks before shipment.
This machine uses the water jacket hydrostatic testing method, also known as the external measurement method, to evaluate the volumetric expansion of high-pressure gas cylinders under hydraulic pressure.
As an important part of CNG cylinder inspection and quality control, water jacket testing helps manufacturers and testing facilities assess cylinder behavior during pressure testing.
Pre-Shipment Inspection of CNG Cylinder Testing Equipment

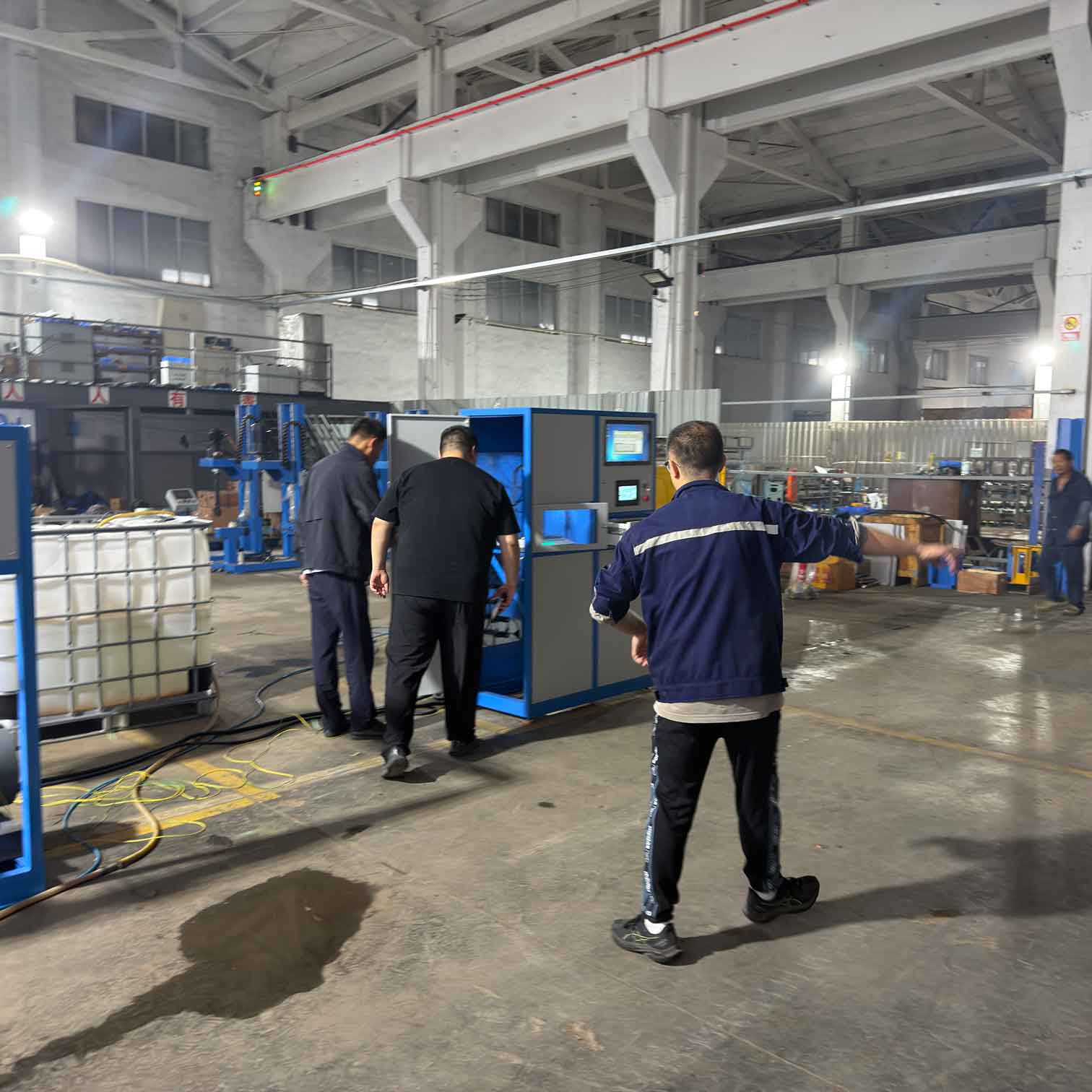

Before arranging international shipment, our engineering team conducts a series of equipment inspections to confirm that the major components, control functions, and testing systems are ready for delivery.
For this Indian customer’s project, our team is focusing on several key areas:
- Control System Inspection: Checking the control cabinet, operating interface, and equipment functions.
- Hydraulic Pressure System: Inspecting the high-pressure pump, pressure gauges, pipelines, and connections.
- Testing Components: Checking the water jacket assemblies, testing fixtures, and associated components.
- System Integration: Verifying that the mechanical, hydraulic, and electrical systems work together as intended.
- Pre-Shipment Confirmation: Reviewing the equipment configuration and project requirements before packing and transportation.
These inspection procedures help identify potential issues before the equipment leaves our factory.
For overseas customers, careful pre-shipment preparation is particularly important because it helps reduce installation difficulties and unnecessary delays after delivery.
How Does a Water Jacket Hydrostatic Testing Machine Work?
The water jacket hydrostatic test is a widely used method for evaluating the volumetric expansion of suitable high-pressure gas cylinders.
Unlike a simple pressure-holding test, the external measurement method provides information about how a cylinder expands when subjected to internal hydraulic pressure.
The general testing procedure involves the following steps:
1. Cylinder Preparation
The cylinder is prepared for hydrostatic testing and connected to the required pressure testing equipment.
2. Water Jacket Installation
The cylinder is placed inside a water-filled jacket or testing chamber. The external measurement system is prepared to measure water displacement caused by cylinder expansion.
3. Hydraulic Pressurization
Water is pumped into the cylinder to increase internal pressure to the specified test pressure according to the applicable testing procedure.
4. Volumetric Expansion Measurement
As internal pressure increases, the cylinder expands slightly. This expansion displaces water in the surrounding jacket.
The measurement system determines the total volumetric expansion during pressurization.
5. Permanent Expansion Evaluation
After the test pressure is released, the system measures the remaining volumetric change.
By comparing total expansion with permanent expansion, operators can assess the cylinder’s deformation characteristics against the applicable acceptance criteria.
This method provides important data for evaluating the structural condition of cylinders during hydrostatic testing.
Main Components of Our CNG Cylinder Hydrostatic Testing Machine
The equipment prepared for our Indian customer consists of several essential systems designed to support hydraulic testing operations.
High-Pressure Pump System

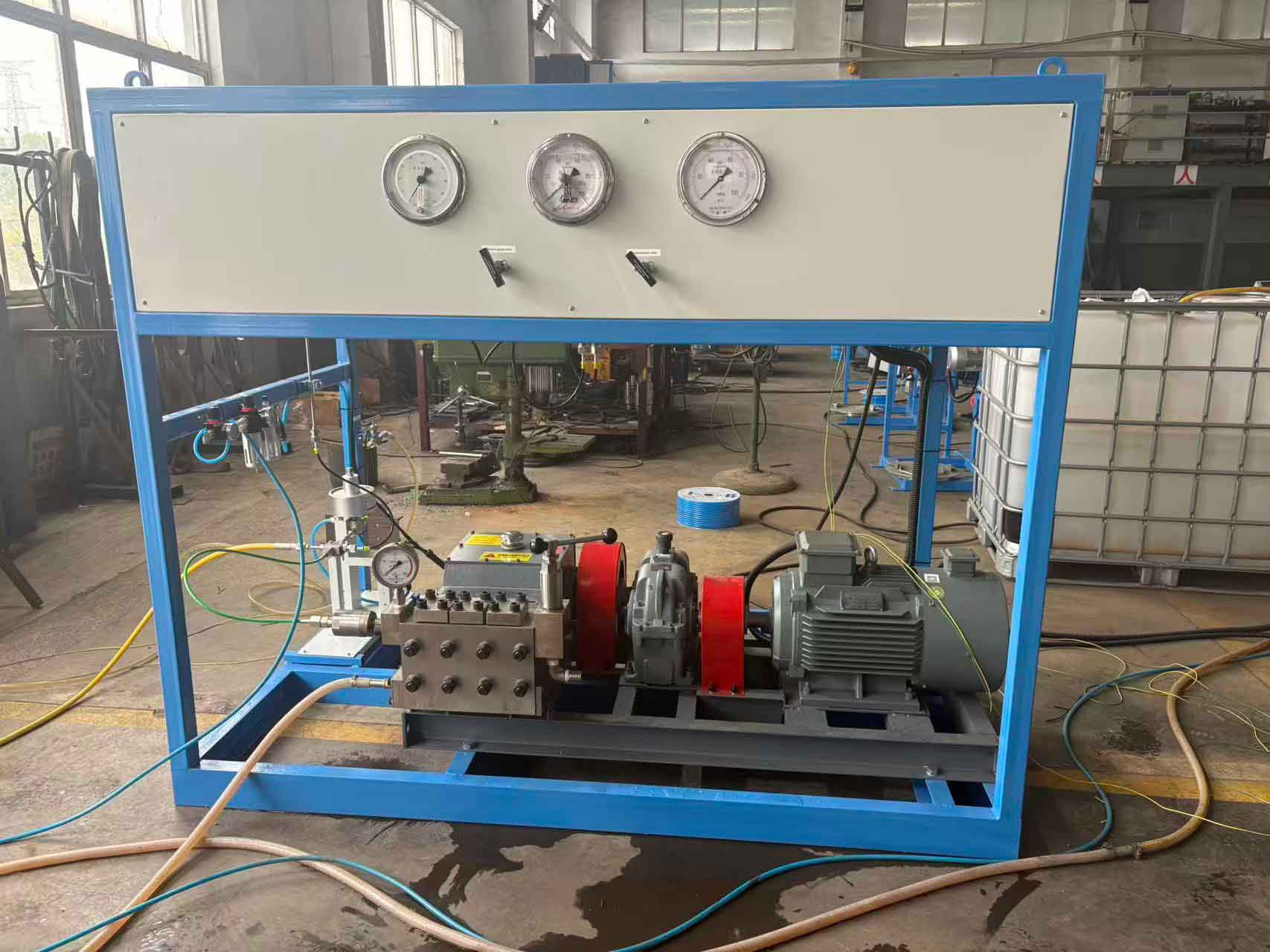

The hydraulic pump unit generates the required water pressure for testing. The assembly includes a motor-driven pump, pressure monitoring instruments, and connecting pipelines.
Stable pressure generation and effective pressure control are essential for conducting reliable hydrostatic tests.
Electrical Control Cabinet

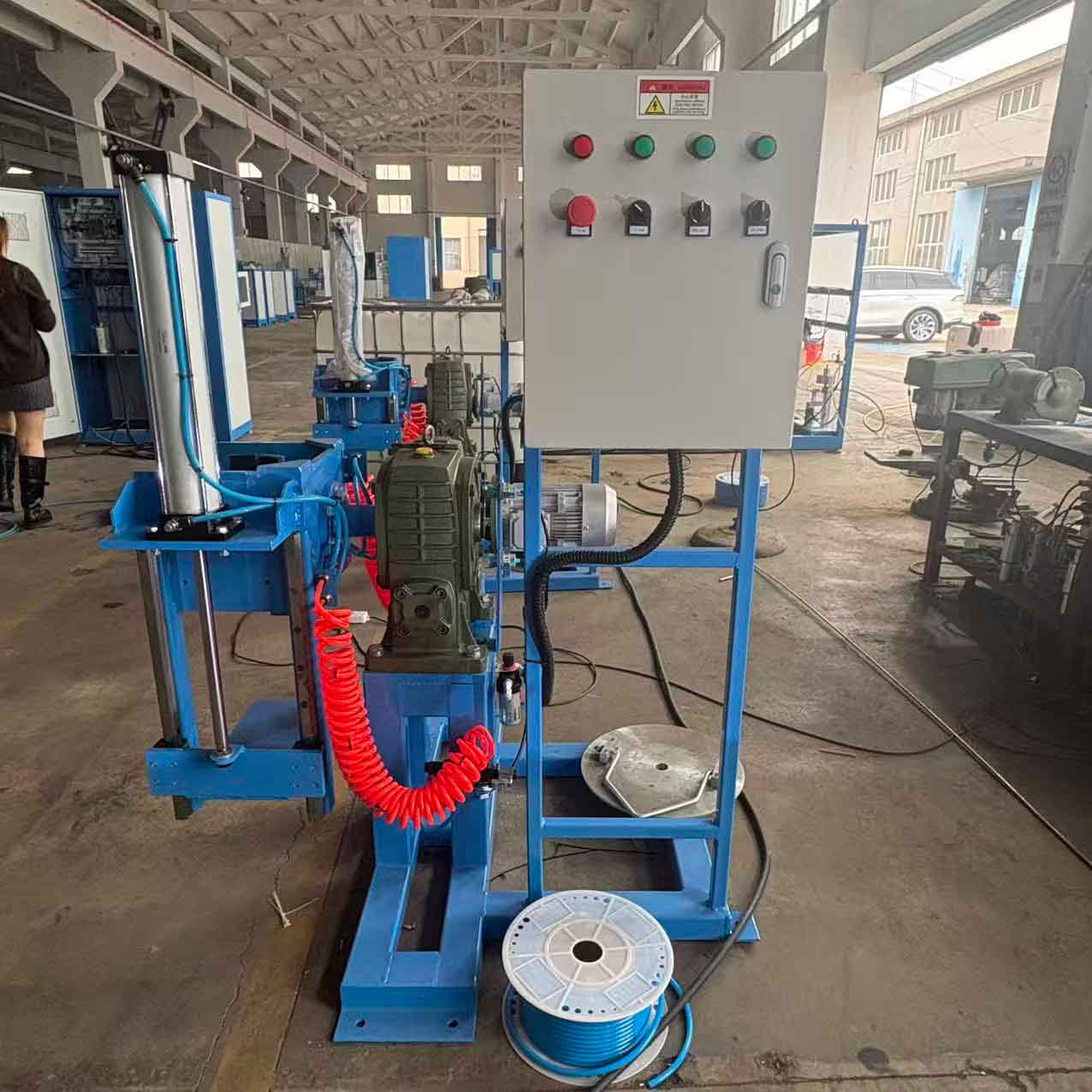

The equipment features an electrical control cabinet with an operator interface.
This system allows operators to manage the testing process and monitor relevant operating parameters according to the machine’s configuration.
During the pre-shipment inspection, our technicians check the control components and related electrical connections.

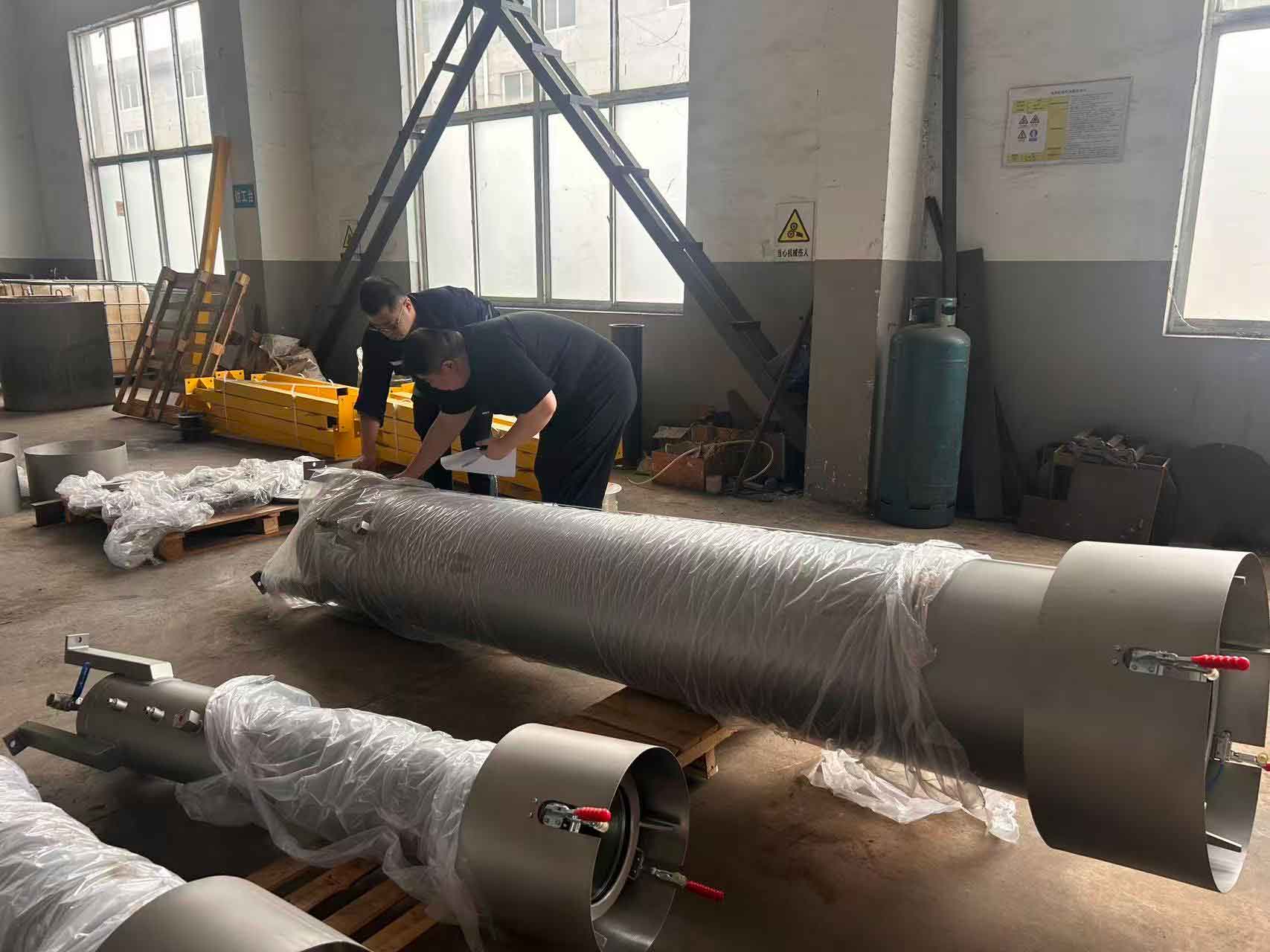

Water Jacket Testing Assemblies
The water jacket assemblies form an essential part of the external measurement testing system.
They provide the environment needed to measure cylinder expansion through water displacement.
The testing assemblies must be compatible with the cylinder dimensions and the specified testing requirements.
Pressure Monitoring and Measurement System
Pressure gauges and measuring components support the testing procedure by providing important operating information.
Proper calibration and verification of the measurement system are necessary to achieve reliable test results.
Why Is Hydrostatic Testing Important for CNG Cylinders?
CNG cylinders operate under high internal pressure during service. Therefore, manufacturers and inspection facilities must use appropriate testing procedures to verify cylinder performance and integrity.
A CNG cylinder water jacket testing machine can support several important quality control objectives:
- Measure total volumetric expansion under specified hydraulic pressure.
- Determine permanent volumetric expansion after depressurization.
- Support the identification of cylinders with excessive permanent deformation.
- Provide measurement data for cylinder acceptance decisions.
- Support applicable production inspection and periodic requalification procedures.
The actual testing requirements depend on the cylinder design, material, applicable standards, and local regulatory requirements.
For cylinder manufacturers and testing companies, selecting suitable hydrostatic testing equipment is an important part of establishing a reliable inspection process.
Supporting CNG Cylinder Manufacturers and Testing Facilities in India
India is an important market for CNG applications, including vehicle fuel systems and related gas storage infrastructure.
As demand for cylinder testing and inspection equipment develops, manufacturers and service providers need reliable testing solutions that match their operating requirements.
For this project, our team has completed the manufacturing work and is conducting the final pre-shipment checks.
We are reviewing the machine components and testing configuration to ensure that the supplied equipment matches the customer’s order requirements.
In addition to equipment manufacturing and supply, we provide technical communication, installation guidance, and after-sales support to help customers prepare for equipment commissioning.
Complete Solutions for High-Pressure Gas Cylinder Production and Testing
Beyond hydrostatic testing equipment, Longterm Machinery offers machinery solutions for high-pressure seamless gas cylinder manufacturing and inspection.
Our equipment portfolio includes:
- Hot spinning machines for seamless gas cylinder forming
- CNC thread screwed machines
- Gas cylinder shot blasting machines
- Automatic cylinder marking machines
- Hydrostatic testing equipment
- Ultrasonic inspection equipment
- Gas cylinder cutting and related production machinery
We can also assist customers with equipment selection, production line planning, and the integration of compatible machinery according to their manufacturing requirements.
Contact Us for CNG Cylinder Hydrostatic Testing Solutions
The CNG cylinder water jacket hydrostatic testing machine for our Indian customer is currently at the final inspection stage before shipment.
This project reflects our ongoing commitment to equipment quality, technical support, and international customer service.
Whether you are establishing a new CNG cylinder manufacturing facility, upgrading an existing inspection station, or expanding your cylinder testing capacity, our team can help you evaluate suitable equipment solutions.
Looking for a CNG Cylinder Hydrostatic Testing Machine?
Contact Longterm Machinery to discuss your cylinder dimensions, testing pressure, applicable standards, and production requirements. We will help you select an appropriate testing solution for your project.
