LTM M 406 CNG cylinder hot spinning machine (Template)

Diameter: DN325~406mm

Length: 800~2000mm

Thickness: 5~18mm

Main power: 110KW

Central height: 1200mm

Control method: PLC

Category:

Description

Tube OD: Max.406mm

Tube OD: Min.325mm

Tube thickness: Max.18mm

Tube thickness: Min.5mm

Initial running length: Max.2000mm

Initial running length: Min.800mm

Central height: 1200mm

Main engine power: 110KW

Template rotation angle:90°

Template central height adjustment: ±30mm

Control methods: PLC

Machine dimension: 18000 x 2000 x 1600mm

Heating type:Single-hole induction heating





No.ItemQty  (set)

Remark

1

LTM M 406 hot spinning machine

11. Material unloading device

2. Material reverse device

3. Main engine

4. Mould device

5. Conveyor device

6. Lubrication device

7. Hydraulic device

8. Control system

2

Mid-frequency heating induction furnace

1

1. Medium frequency power supply;

2. Single-hole heating furnace

3. With insulation protection inductance

3

Auto steel pipe heating device

1

1. Material splitting device

2. Auto. heating mechanical arm

3. Steel pipe rotation heating device

4. Material feeding frame

5. Material dialing device

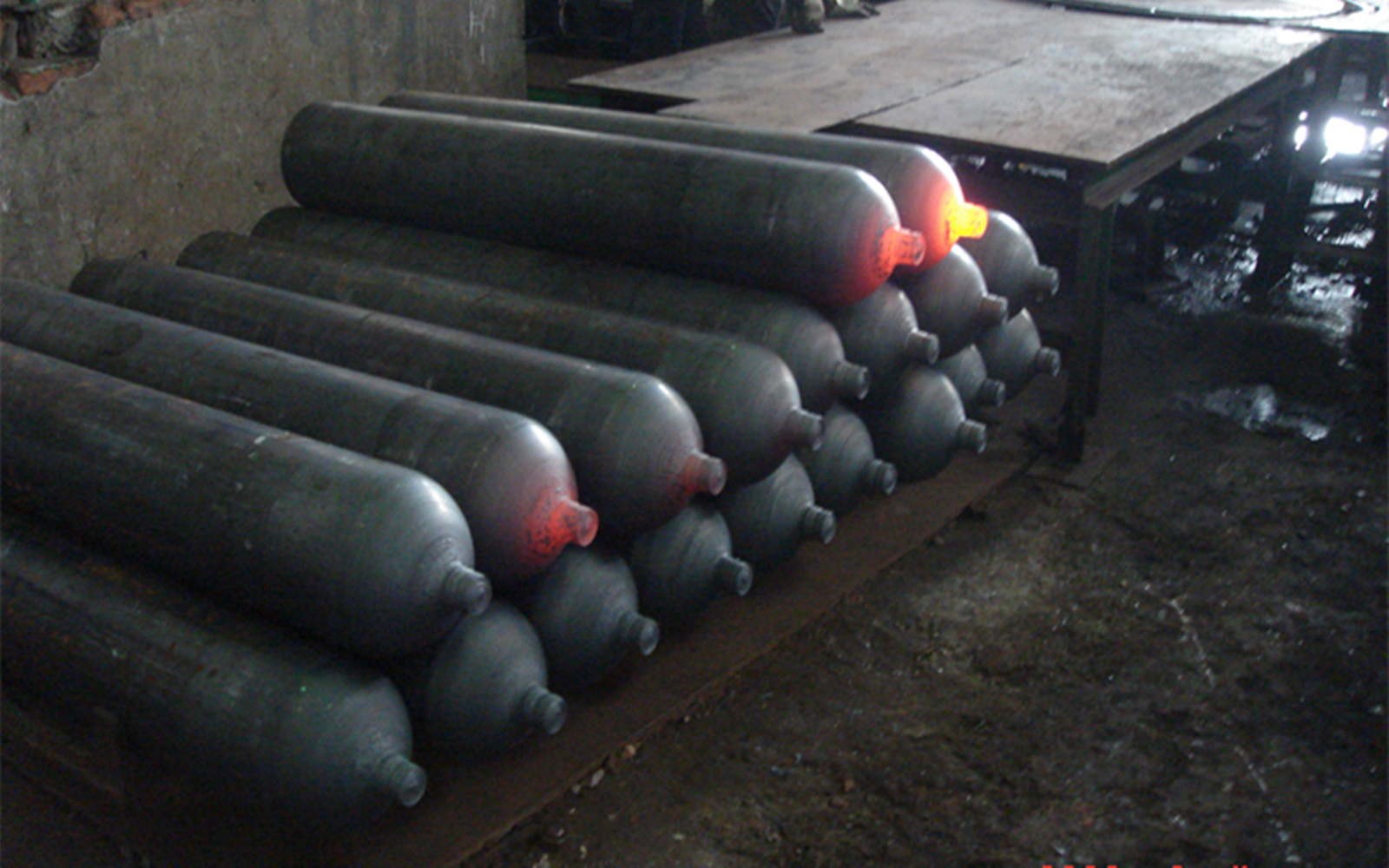

Finished sample
