LTM G 406 CNG cylinder hot spinning machine (Roller)

Diameter: DN325~406mm

Length: 800~2000mm

Thickness: 5~18mm

Main power: 144KW

Spindle speed: 700 rpm

Control method: CNC

Category:

Description

LTM G406

Main technical parameter:

Material: 30CrMo、35CrMo、42CrMo、34CrMo4、35CrNi3MoV etc

Tube OD: Max.406mm

Tube OD: Min.325mm

Tube thickness: Max.18mm

Tube thickness: Min.5mm

Initial running length: Max.2000mm

Initial running length: Min.800mm

Central height: 1200mm

Main engine power: 144KW

Roller rotation angle:100°

Control methods: CNC

Machine dimension: 18000 x 2000 x 1600mm

Heating type:Single-hole induction heating





No.ItemQty  (set)

Remark

1

LTM G 406 hot spinning machine

1

Bearing adopts “Wafang” bearing brand;

220KW main motor adopts Xima brand from Xian,China;

Spindle drive belt adopts OPT brand from Germany;

Siemens CNC system;

Siemens DC device;

Siemens low voltage appliances;

Omron detection switch;

U.S. MTS Built-in Displacement Sensor;

Italy ATOS Proportional Speed Control Valve;

hydraulic valve from “yuciyouyan”or ”Beijing Huade”;

2

Mid-frequency heating induction furnace

1

1、Medium frequency power supply;

2、Single-hole heating furnace

3. With insulation protection inductance

3

Auto steel pipe heating device

1

1. Material splitting device

2. Auto. heating mechanical arm

3. Steel pipe rotation heating device

4. Material feeding frame

5. Material dialing device

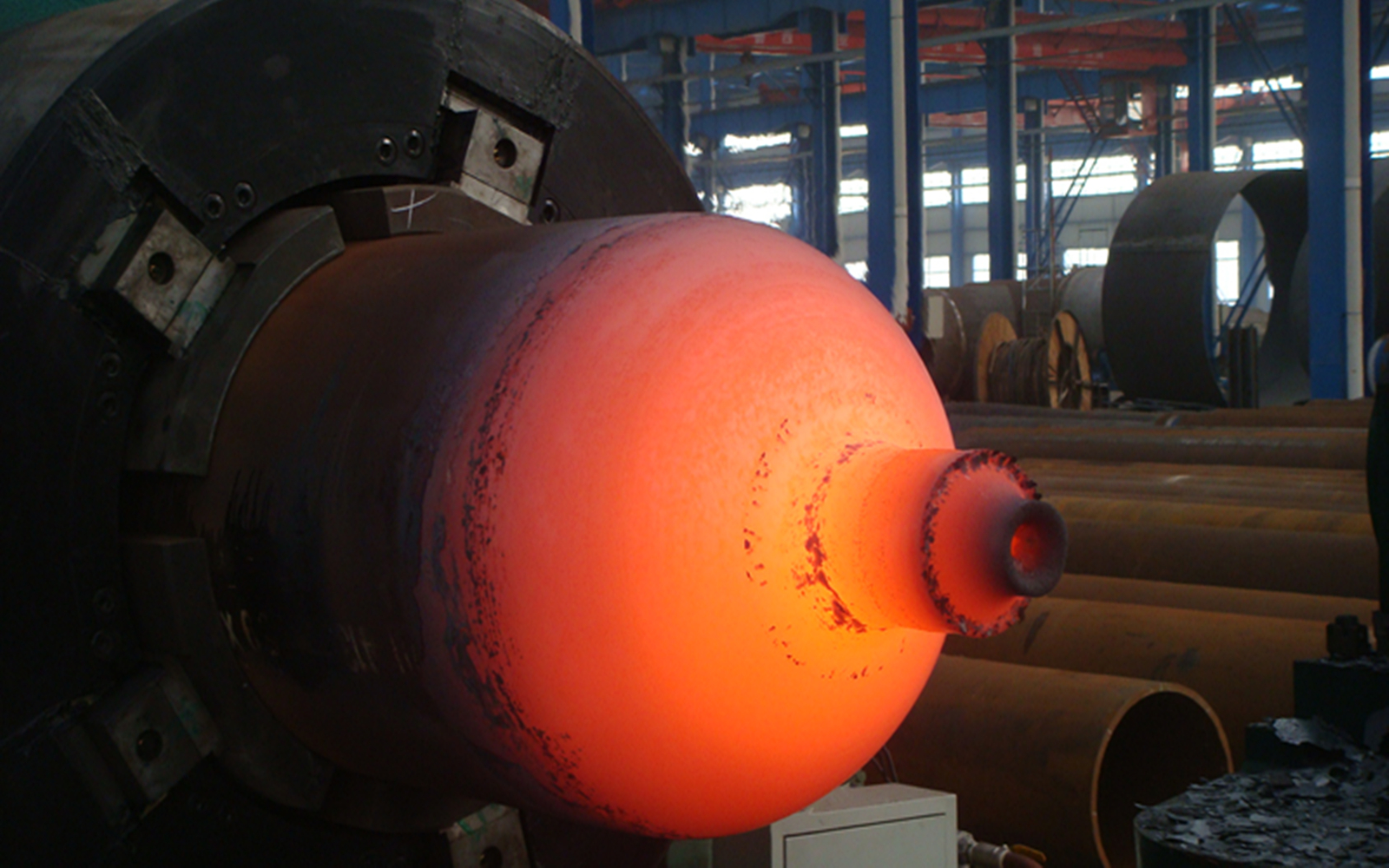

Finished sample
